Slotted linear floor drain with TIG-welded frame and brushed finish, engineered for high-flow surface drainage.
Slotted linear floor drain with TIG-welded frame and brushed finish, engineered for high-flow surface drainage.
Perforated linear floor drain with precision CNC-punched grate and detachable strainer for efficient water drainage.
AussieSteel tile insert linear floor drain with removable filter and adjustable legs, designed for concealed installation.

Linear Floor Drain OEM Series | Seamless Integration & Precision Fabrication

Seamless Welding Structure
Surface Texture Control
Modular Drain System
Custom Drainage Length
  • Category: Floor Drains
  • SKU: as-lfd-series
  • Material Grade: SUS304 / SUS316
  • Surface Texture Options: Brushed / Mirror / Matte / PVD Titanium finishes
  • Drainage Pattern Design: Multiple slot geometries available — straight line, V-shape, or modular pattern

The Linear Floor Drain OEM Series embodies a clean, continuous form achieved through integrated cutting, bending, and seamless welding. Each piece demonstrates the transition from raw steel to functional architectural detail — refined through uniform slot geometry, consistent surface texture, and precise edge alignment.

This series emphasizes structural integrity and visual coherence, designed for custom adaptation in size, drainage configuration, and finishing style. Beyond functionality, it highlights how thoughtful fabrication enhances both durability and modern spatial aesthetics.

Product Details

Production Origin
Foshan, Guangdong, China
Customization Scope
Dimensions / Surface Finish / Logo / Structure Type

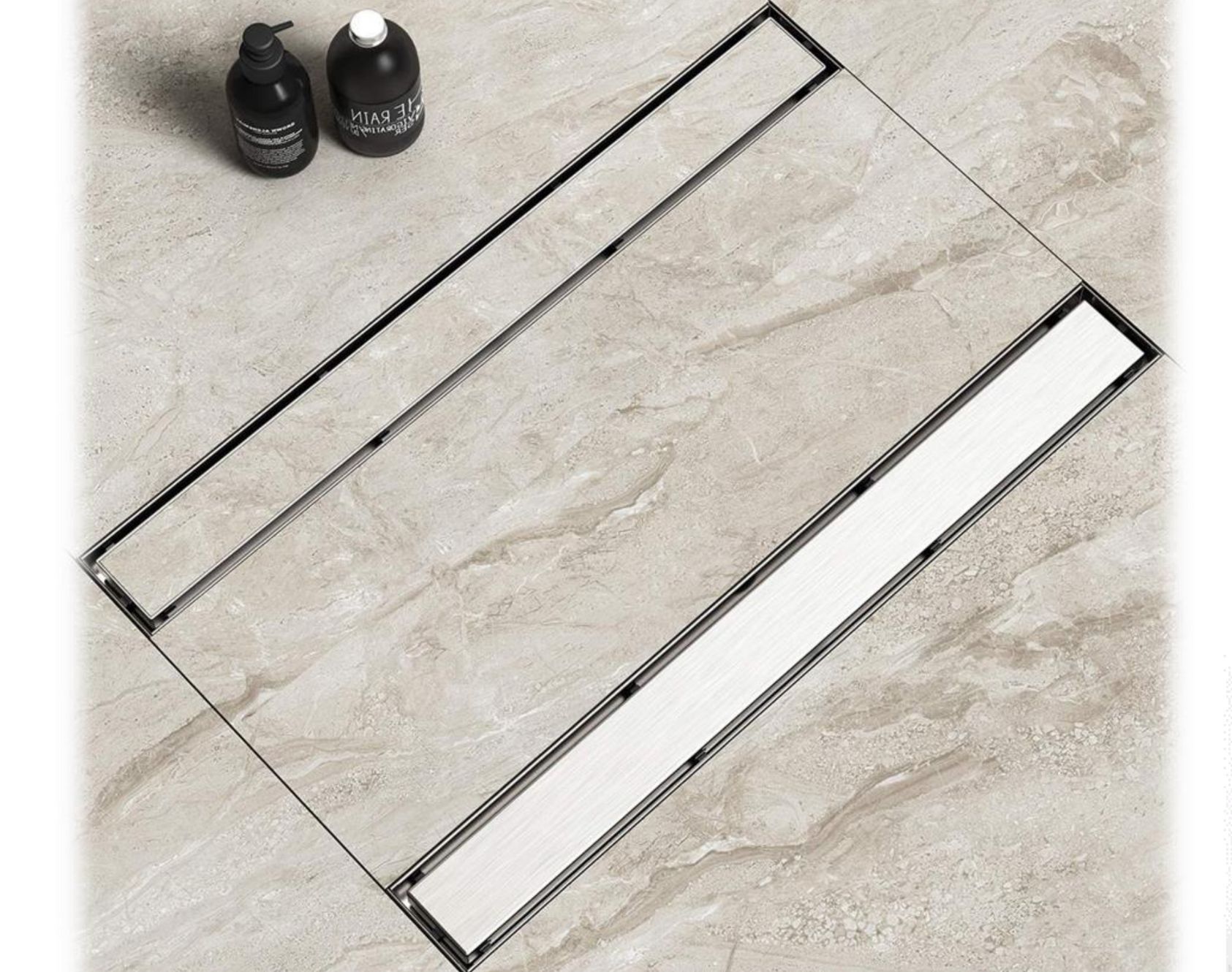

Two-in-one linear floor drain with interchangeable installation for tile insert or flat grate. Illustrated assembly steps showing reversible design and adjustable support legs for versatile applications. Two-in-one linear floor drain with interchangeable installation for tile insert or flat grate. Illustrated assembly steps showing reversible design and adjustable support legs for versatile applications.

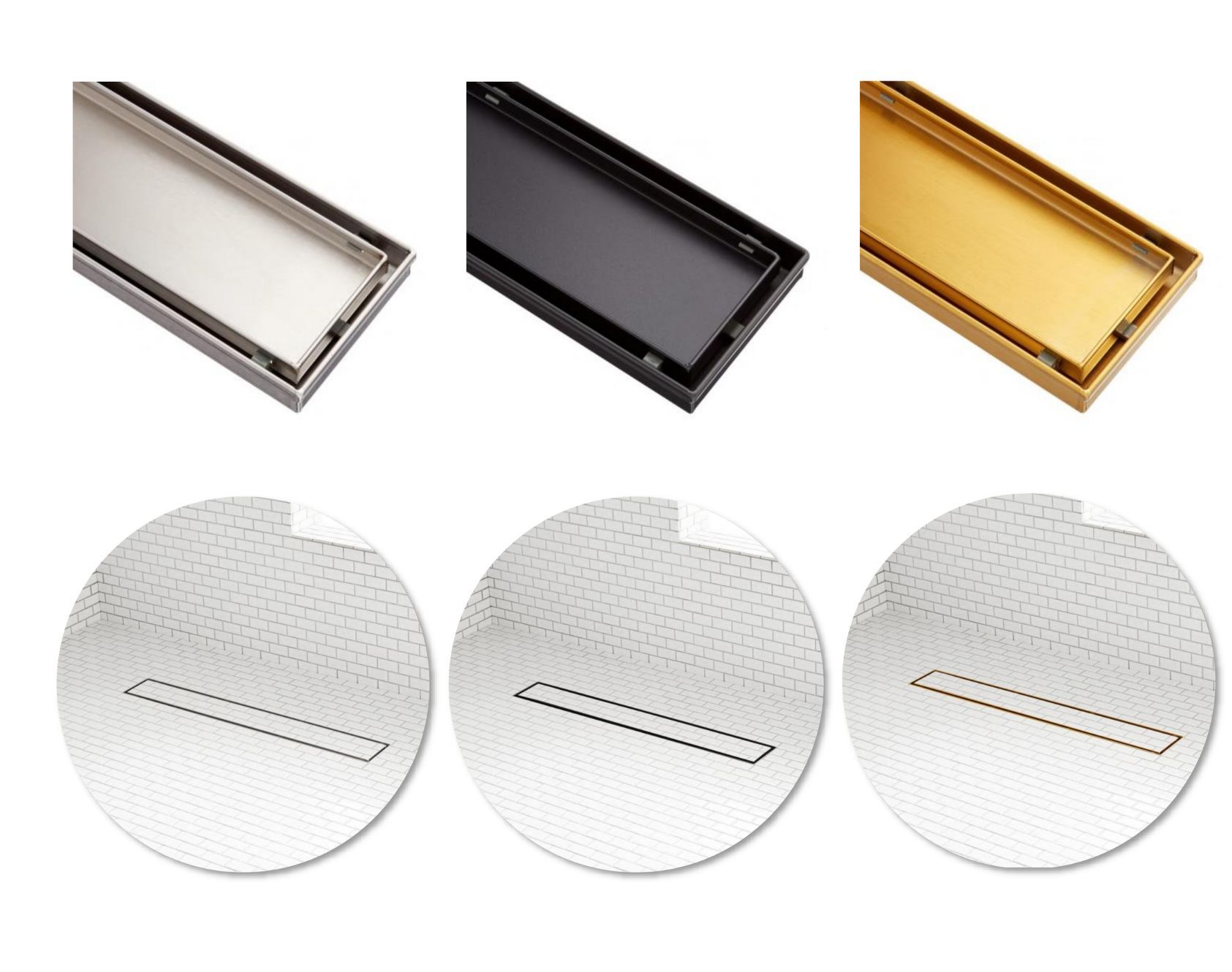

Stainless steel invisible linear floor drain in brushed, matte black, and PVD gold finishes, designed for seamless integration with tiled floors and concealed drainage. Stainless steel invisible linear floor drain in brushed, matte black, and PVD gold finishes, designed for seamless integration with tiled floors and concealed drainage.

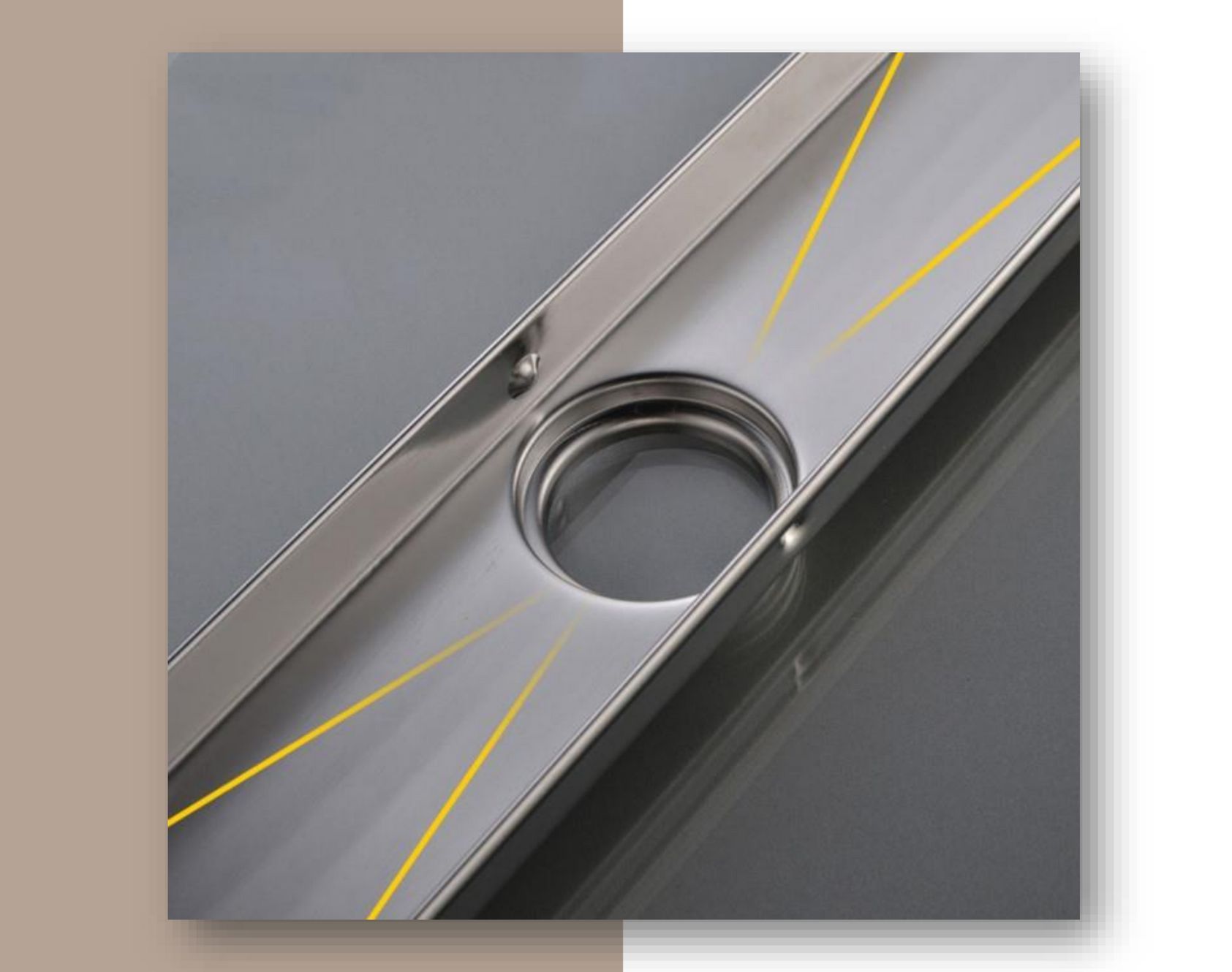

Close-up view of stainless steel linear floor drain with V-shaped channel design, guiding water flow for efficient drainage and reducing residual water. Close-up view of stainless steel linear floor drain with V-shaped channel design, guiding water flow for efficient drainage and reducing residual water.

Related Products

AussieSteel linear grid-style floor drain — brushed stainless steel finish with seamless welded edges, representing advanced fabrication quality. Square Floor Drain Series | Stainless Steel Fabrication & OEM Surface Finishing Capabilities

Specifications

AttributeDescription
Material GradeSUS304 / SUS316 stainless steel with optional customized thickness
Fabrication ProcessLaser cutting → CNC bending → TIG welding → Surface finishing
Length Range400 mm – 1200 mm standard, customizable upon request
Slot Geometry OptionsStraight, V-shaped, or modular pattern configurations
Surface Texture OptionsBrushed / Matte / Mirror / PVD Titanium
Drainage EfficiencyOptimized slot alignment for smooth water flow and easy maintenance
Tolerance ControlFlatness and joint alignment maintained within ±0.2 mm
Quality Assurance100% inspection for structure, surface consistency, and assembly precision
Customization ScopeDimensions, slot layout, structure design, and finish type
